A Style Introduction
Specification: Screen size 2.1inch
Gross Weight: About 93.2g
Net Weight: About 33.2g
Application: MTB Road Bike
Color: White Black
Battery: CR2302 button battery*1
Waterproof: Daily waterproof
Installation position: Handlebar

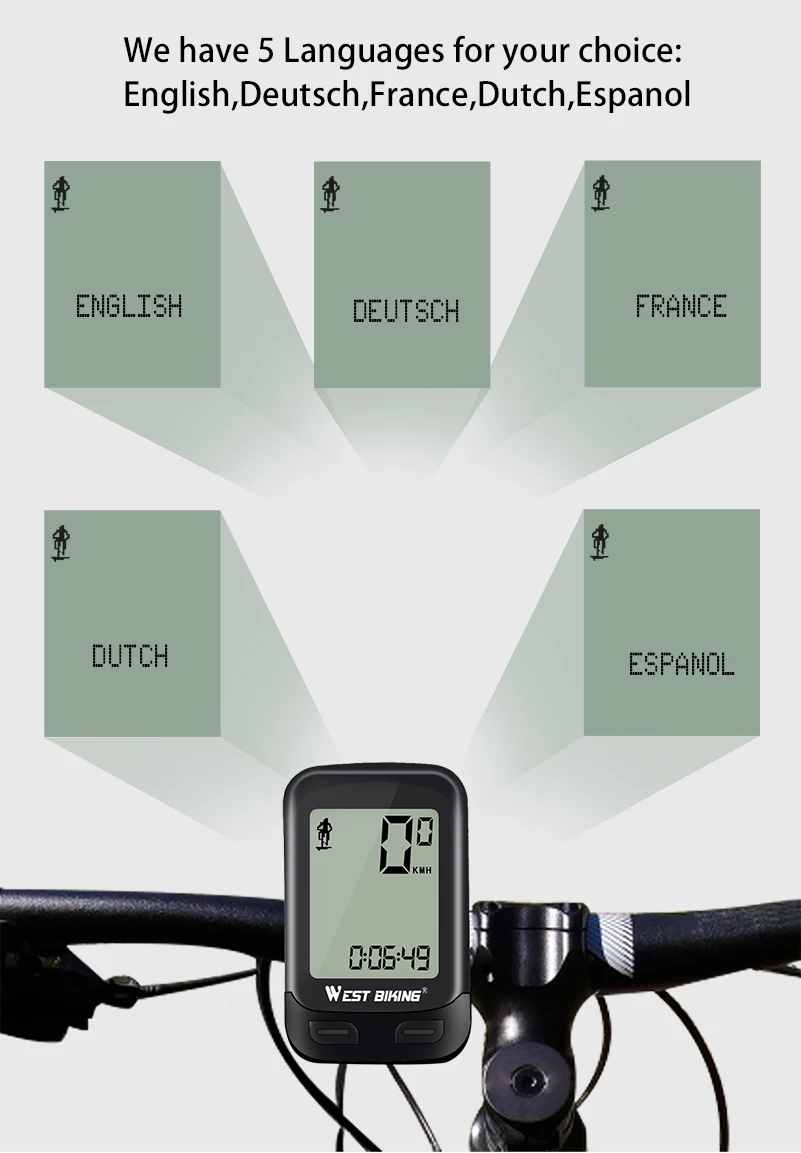

Display Five Languages (English, Deutsch, France, Dutch, Espanol)
Transmitting distance: the max 60cm/23.62inch
Package Content: 1*Head device, 1*Bracket, 1*Sensor, 1*Magnet, 2*Sponge Pad, Plastic strap,1*Rubber loop
Feature: Backlight, Multifunctional, Easy to use
Five Languages Wireless Stopwatch
Computer made of quality material with fine process, it’s lightweight, portable, durable, waterproof, resistant to high and low temperature. The screen is luminous and clearly display the time, average speed, maximum speed, distance, etc. And support for five language Systems: English, Deutsch, France, Dutch, Espanol.
Upgraded Version description :

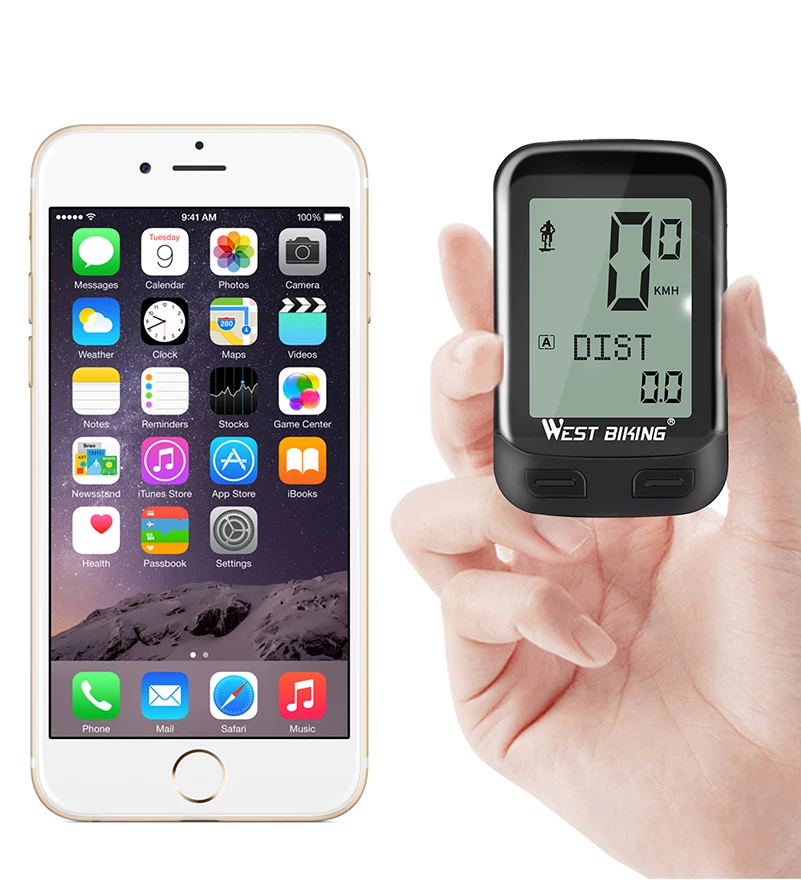

Size:6.0*4.4*1.5CM/1.73*0.24*0.59inch Screen: 2.1inch Display Five Languages (English, Deutsch, France, Dutch, Espanol)

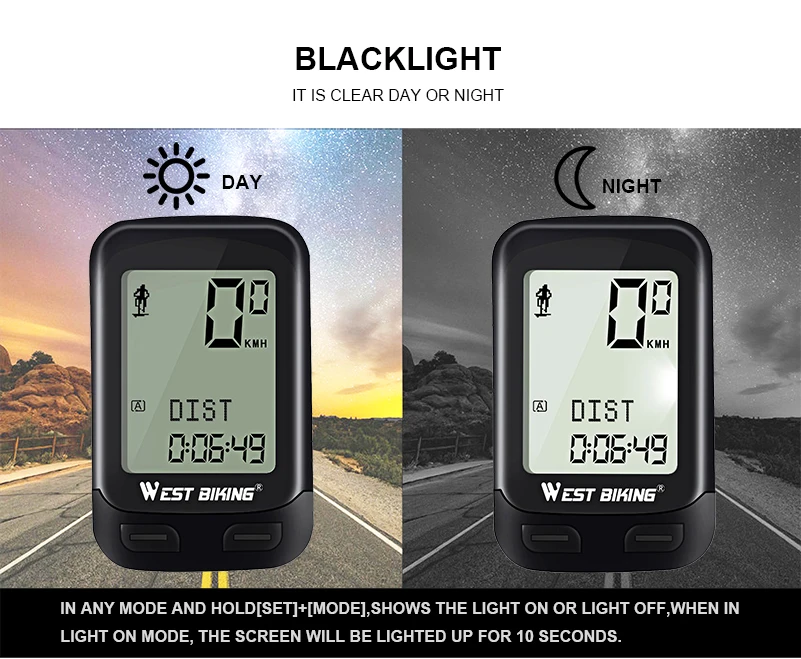

Ride in the dark? A backlight feature makes your screen more readable than does shining a helmet light on the screen.

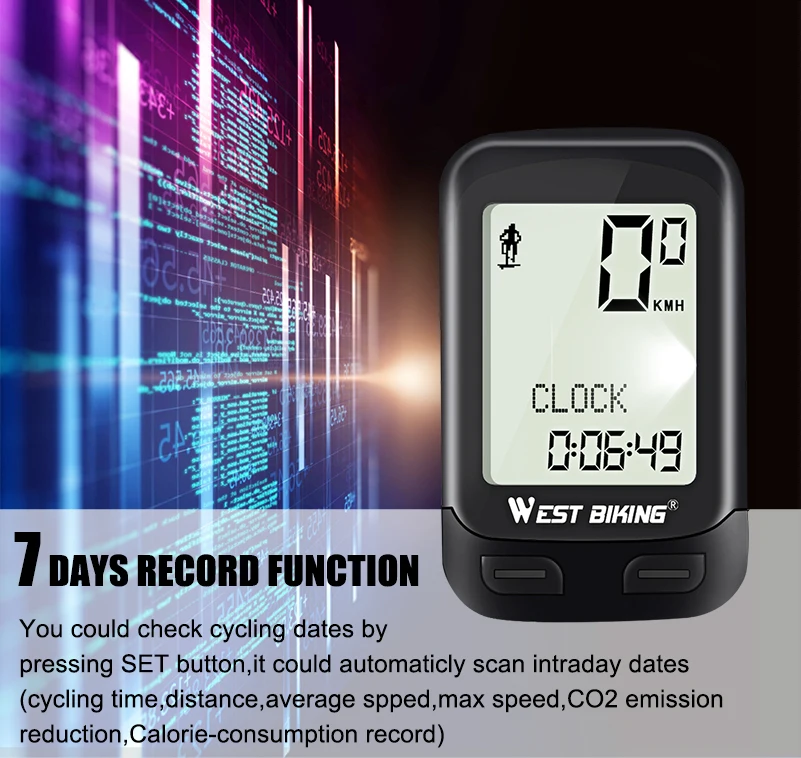

1.Display Five Languages 2.Clock 3.Stop Watch 4.Temperature 5.Metric/Imperial alternative 6.Scan:Automatic Circulation 7.Wheel Setting 8.Analogy Speed indicator 9.AUTO ON/OFF 10.Trip up/down 11.Calorie consumption(KCAL) 12.LED backlight 13.Current speed 14.AVG speed/MAX speed 15.Speed comparison prompts 16.Riding Distance/time 17.Total distance/time 18.Weekly riding time/distance 19.Automatic memory and updated every weekly
Do not put the product into water or get wet in the rain for a long time. Cover a plastic warp when there is a bad weather.
Smart microcircuit, stable function
Automatic memory and updated every weekly -Powerful microcircuit; more stable function more correct data; longer service life
Standby / wake-up automatic
Long battery endurance, low consumption
Only one 2032 button cell, low consumption and long endurance Open the battery cover with a coin
Bicycle Computer Installation
1.Attach the base to the handlebars 2.Fix the monitor to the base 3.Loosely attach the magnet to a spoke 4.Attach the wireless sensor using the wraps 5.Adjust the distance between magnet and sensor to within 3mm 6.Setting date.
B Style Introduction
Waterproof: water resisit
Appliction:MTB,Road bike,Rixed Gear
Power Supply: CR2032H*2
Package content:1*Head device,1*bracket,1*sensor,1*magnet,2*rubber slice,3*Plastic strap,1*O-ring
Features:Backlight,multifunction,easy to use, water resisit,5 languages
Push the computer along the chute, the button stand fix the computer and hold. Removing it just need to pull it out in reverse direction along the chute. Check the installation: Turn the front wheel to run, and look to the screen to confirm if it’s got signal. If there has no signal or the reaction is not sensitive please adjust the relative location of Sensor and Magnet slightly.

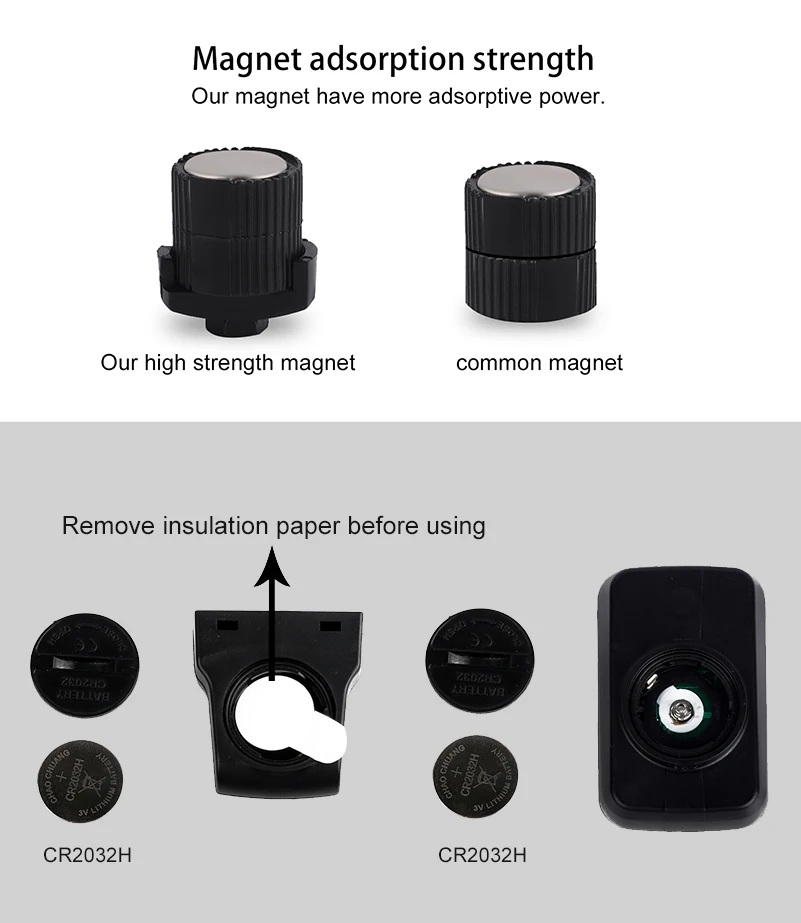

Remove the battery cover and put a piece of CR2032 battery into the case. Notice: Positive pole (+) should be set upwards. Then cover the the battery cover and screw down.
In the accessories pack there has a strap which can be used to fasten the Seat onto the handlebar, as well we can use the back-up plate to fasten it.
Sensor and Magnet Installation
Install the sensor onto the front fork of bicycle, and the magnet is installed onto the steel wire at the same side of wheel. Sensor can be underlaid with back-up plate and use the strap to fasten onto the front fork. It needs to be installed in 60cm distance from the computer, as the picture shows. Adjust the comparative location of Sensor and Magnet. The plane must face to the inductor. Keep the space to be 1.5mm. Magnet cannot be set to the center of Sensor face-to-face, it’s better with the head or tail of Sensor
1 Put the battery on – Setting KM, M, press SET button to choose and press MODE button to confirm. 1 mile = 1.609 km.
2 Wheel I perimeter setting, the screen shows 2060 (perimeter is 2060 mm). Setting the flashing number from right to left, press SET button to change the number and press MODE button to confirm.
3 Wheel II perimeter setting, the screen shows 1860 ( perimeter is 1860 mm). Setting the flashing number from right to left, press SET button to change the number and press MODE button to confirm.
4 Weight setting. Screen shows K065 and “K” flashing.First
choose Kilogram K or Pound L then setting the value. Press
SET button to choose and press MODE button to confirm.
5 Bicycle I Maintenance setting, screen shows 0200, setting from right to left. Press SET button to change the flashing number and press MODE button to confirm.
6 Bicycle II Maintenance setting, screen shows 0800, setting from right to left. Press SET button to change the flashing number and press MODE button to confirm.
From now on you have finished the setting, and you can

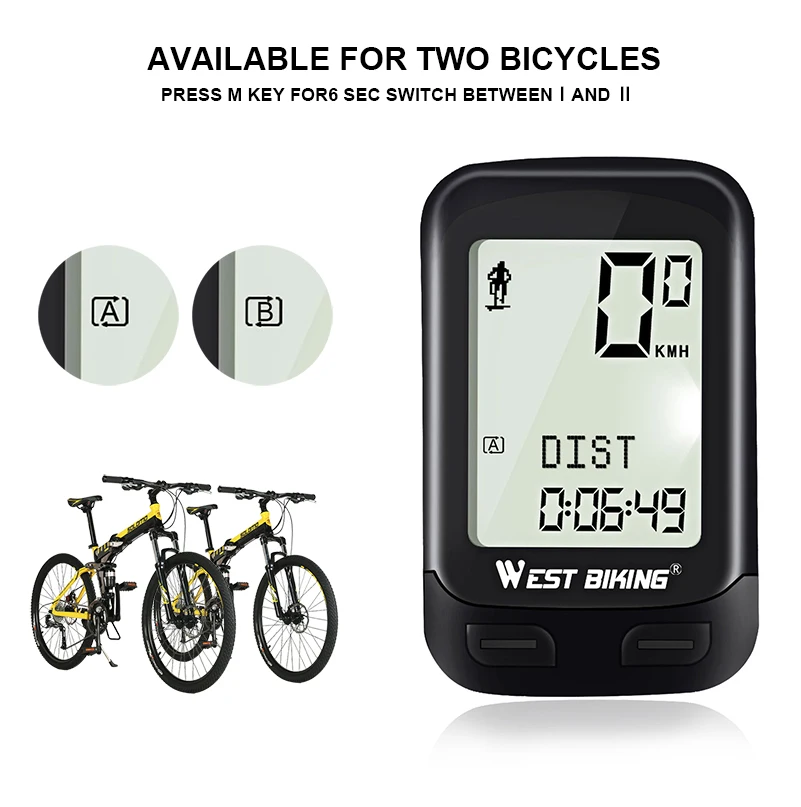

ride your bike. Default bike is bike I. If you want to reset
please press left and right key for 6 seconds at the same
time, and the steps are the same with above.
You can also measure it by yourself by the following ways:
Method 2:First make a mark on ground when the nozzle is on the below,then make the wheel run once the gas mozzle on
the below again please mark,and measure the distance between the two marks you can get your wheel perimeter.if the
dustance is 1615 then you should input 1615.
(you can also measure the diameter and multiply 3.14 ti get the perimeter.)
Method 3:Measure the diameter and multiply 3.14 to get the perimeter.if the result is 1615 meter,
then you shoule input 1615.
